800 Watt （ 8pcs 100 Watt Monocrystalline Solar Panel Kit with 60A LCD

800 Watt （ 8pcs 100 Watt Monocrystalline Solar Panel Kit with 60A LCD Controller Mounting Z Brackets for RV Boat Shed

$279.47 $699.00

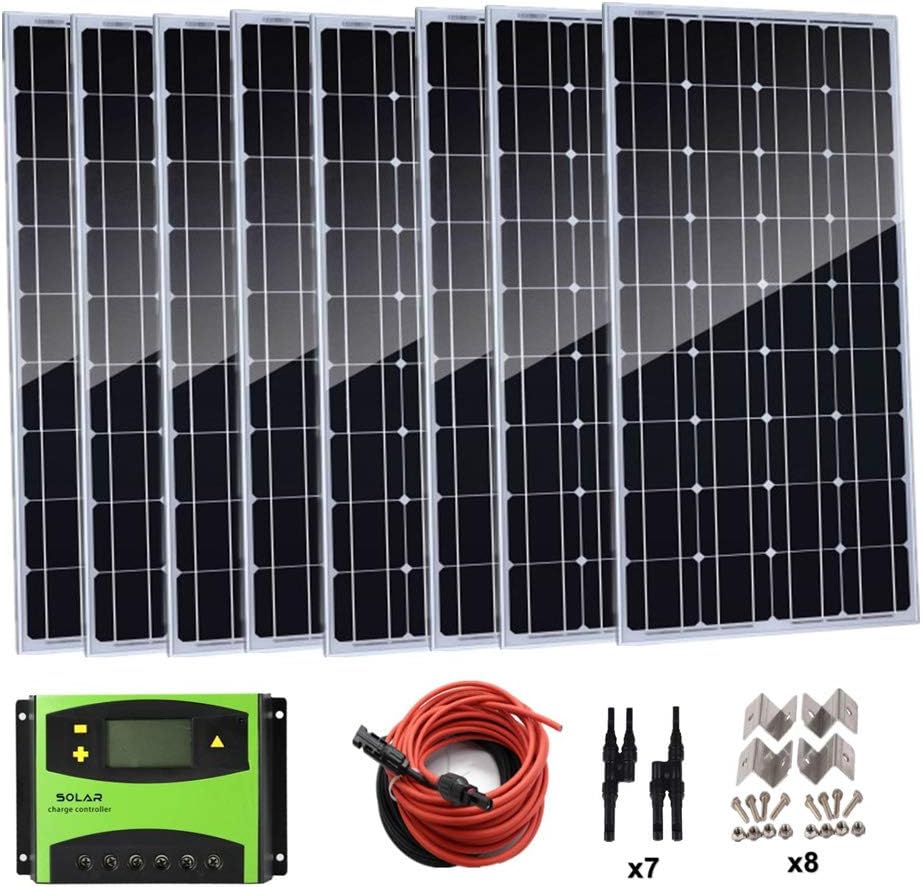

This AUECOOR 800W Solar Kit include:
* 8 pieces 100W mono solar panel with 90cm of special solar cable and waterproof connectors
* 60A 12V/24V LCD controller
* 8 Sets of Solar panel Mounting Z brackets
* 5m solar cable(red about 2.5m, black about 2.5m)
* 7 Pairs Y branch connector

Perfect for 12V/24V battery system:
12V installation: connect 8 pcs panels in parallel
24V installation: Pls divide 8 pcs panels into 2 strings, each 4pcs group in parallel, and then 2 strings connect in series for 24v system.

100W Mono Solar Panel Specification:
Maximum Power: 100W
Optimum Operating Voltage (Vmp): 18 V
Open-Circuit Voltage (Voc): 21.6 V
Optimum Operating Current (Imp): 5.56 A
Short-Circuit Current (Isc): 6.1A
Dimensions: 1196*541*30mm / 47.08 X 21.29 X1.18 In
Weight: 15.5 lbs (7KG)
90cm of special cable with connectors attached.

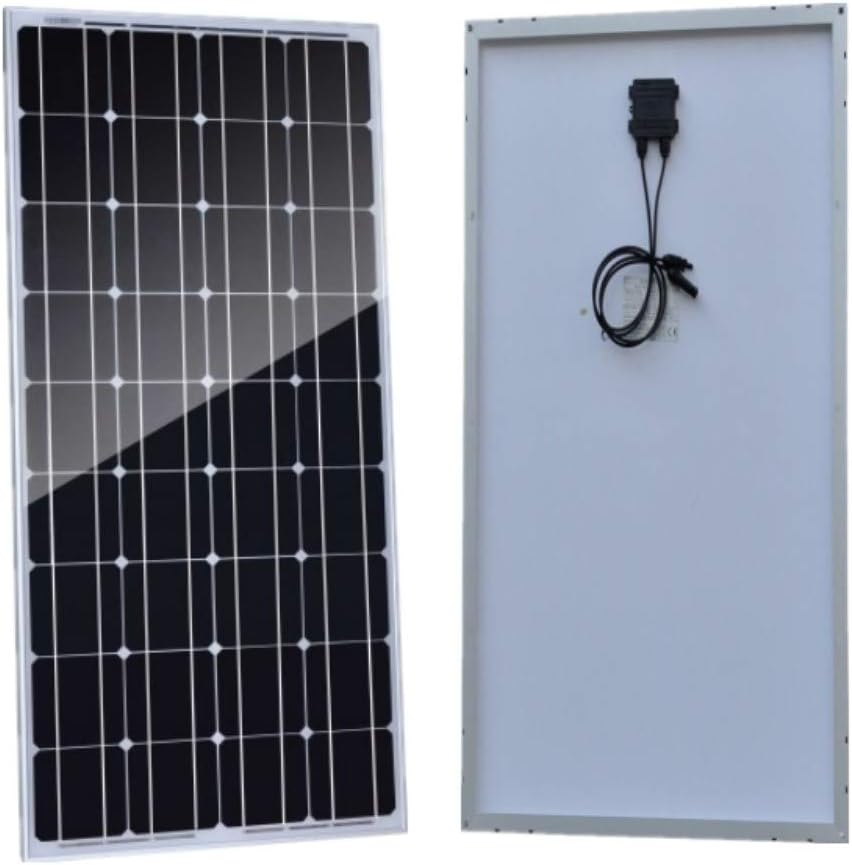

The AUECOOR 100 Watt 12 Volt Monocrystalline Solar Panel is a key component in establishing an off-grid solar energy system. Weighing in at 15.5 lbs, this panel contains efficient monocrystalline solar cells protected by a thin layer of tempered glass.

Anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance, Withstand high winds and snow loads. Waterproof junction box provides complete protection against environmental particles and low pressure water jets.

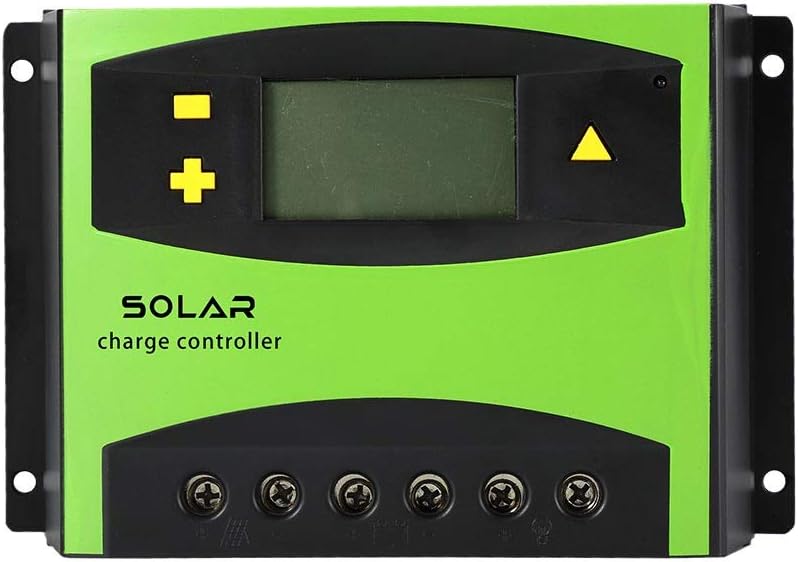

60A 12/24V Charge Controller
This series is a new series of intelligent multi-purpose solar charge controllers.
Its innovative design makes it easy to install and quite user-friendly. Optimized charging and discharging management extends the service life of batteries considerably.

Please feel free to contact AUECOOR if need any help.
