1200 Watts Wind Solar Powered System(Hybrid System Kit): 800W Wind Turbine Generator + 4pcs 100W Monocrystalline Solar Panel + 2000W Pure Since Wave Inverter(Peak 4000W)+Accessories

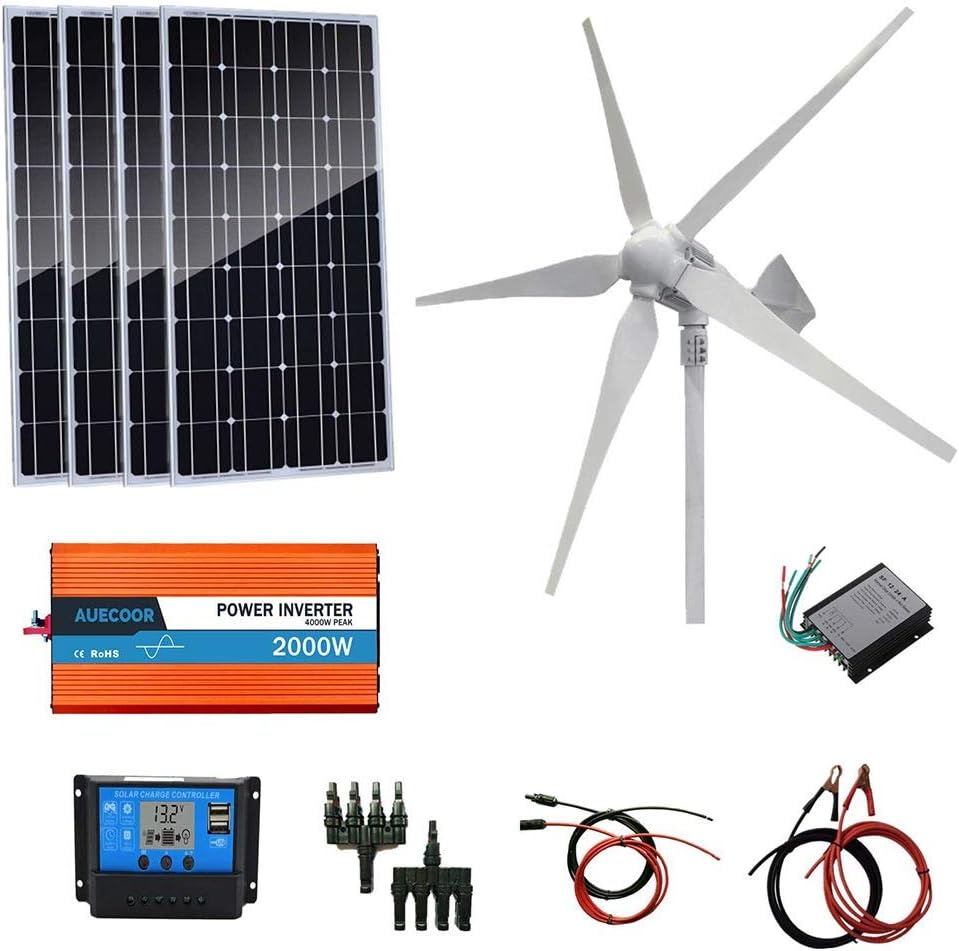

Package include:
1* 800w wind turbine
4* 100w mono solar panel 1* 2000w peak 4000w pure sine wave inverter
1* wind controller

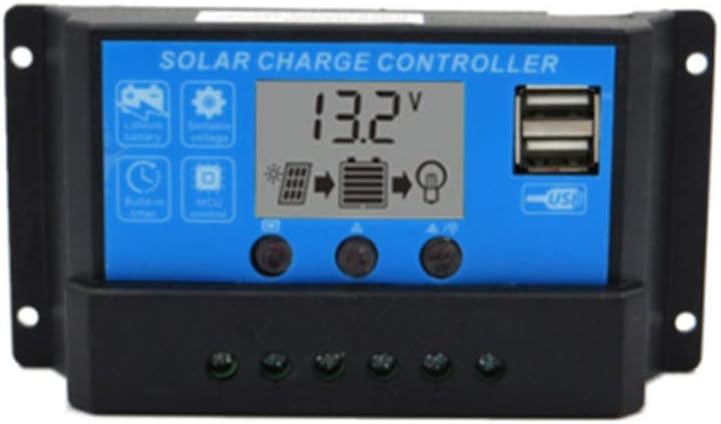

1* 30A Solar controller
1* cable with alligator clip
1* cable with F/M connector
1* 4 in 1 F/M Connector

NOTES:
Please kindly advise you need 12V or 24V system when place order.

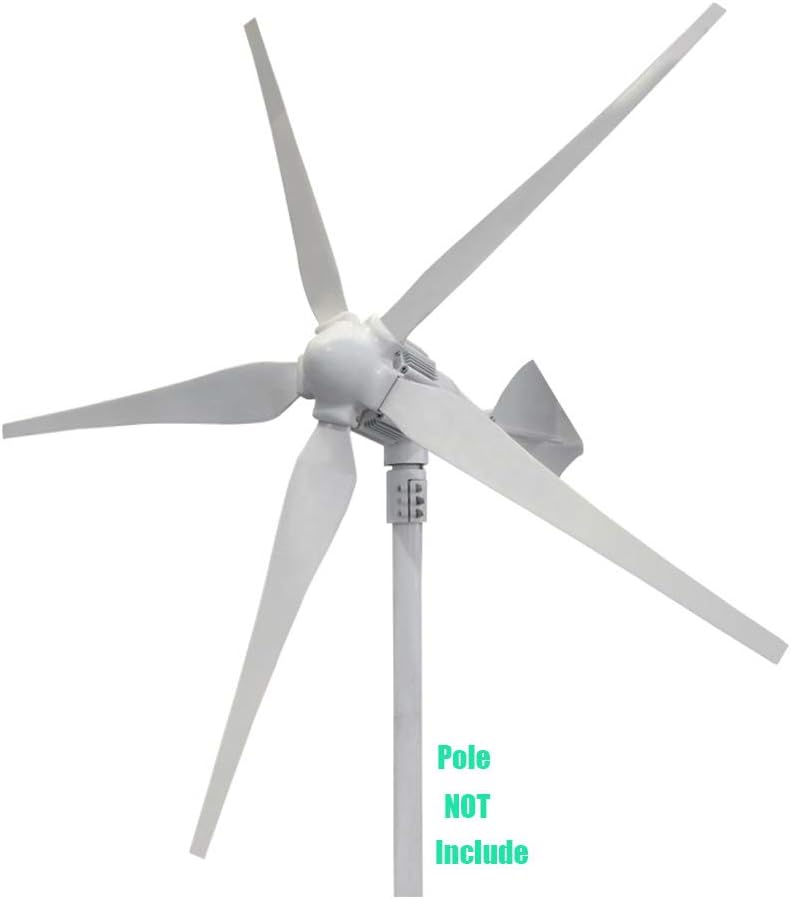

* 800W Wind Turbine Specification:
Rated power 800W
Rated DC voltage AC 12/24V/48V
Rated current 66A/33A/16A
Rated speed 620r/m
Max power 900W
Number of blade 5pcs
Starting wind speed 3m/s
Cut-in wind speed 3.5m/s
Cut-out wind speed 15m/s
Security wind speed 40m/s
Rated wind speed 12m/s
Engine Three-phase permanent magnel generator
Rotor diameter 1850mm
Blade material FRP (fiber glass- reinforced plastics)
Output line anti-winding device Over all three-phase commutator
Over-speed wind protection Tip stall protection + tumed protection + electomagnetic brake
Equipment surface protection Aluminum oxide + plastic coating
Working temperature -45°C-70°C
G.W. 28kg
Packing Size:830*530*460MM

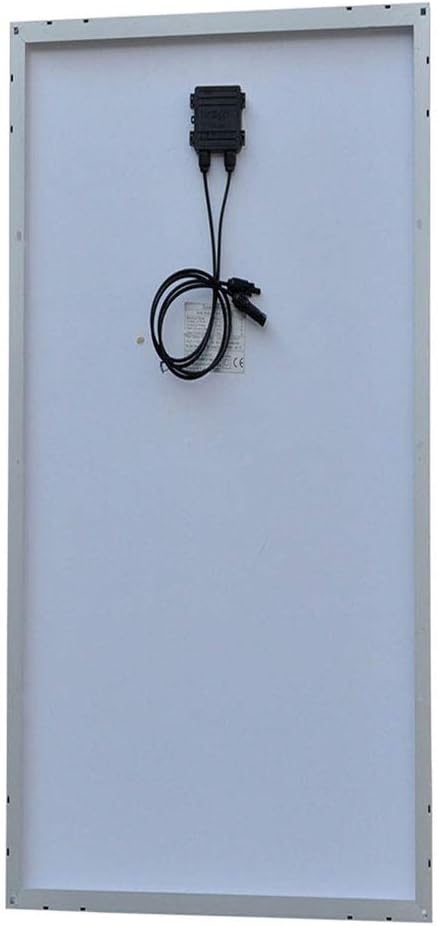

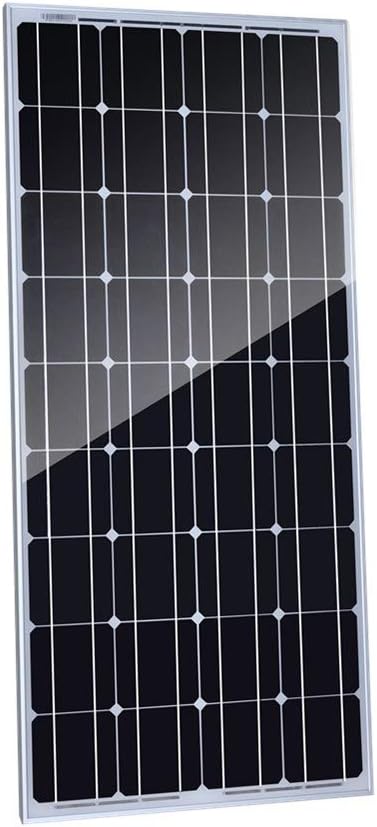

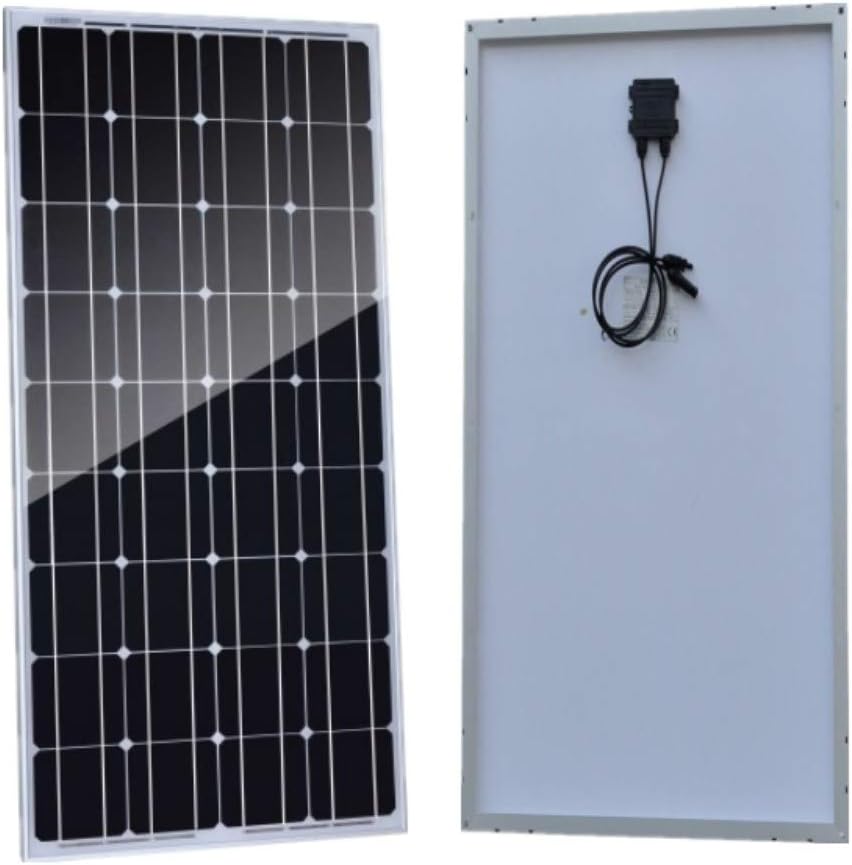

* 100W 18V Mono Solar Panel Specification:
Maximum Power: 100W
Optimum Operating Voltage (Vmp): 18 V
Open-Circuit Voltage (Voc): 21.6 V
Optimum Operating Current (Imp): 5.56 A
Short-Circuit Current (Isc): 6.1A
Dimensions: 1196*541*30mm / 47.08 X 21.29 X1.18 In
Weight: 15.5 lbs (7KG)
90cm of special cable with F/M connectors attached.

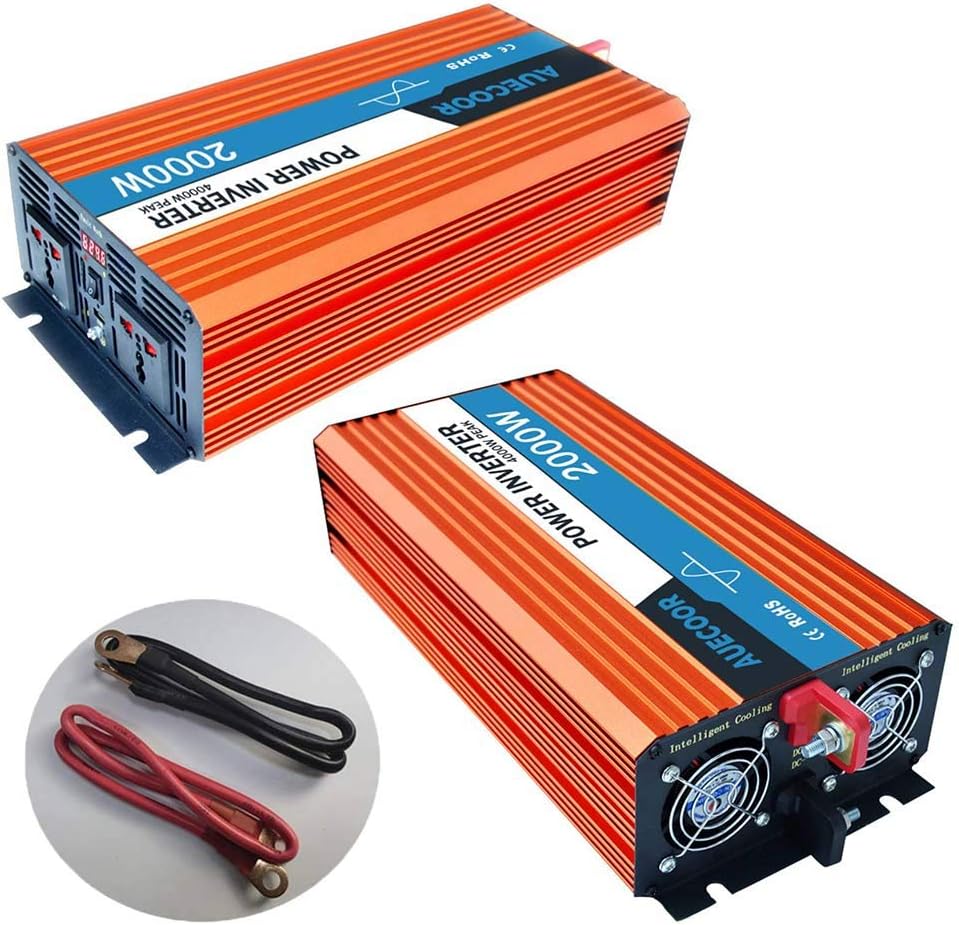

* 2000w Peak 4000W DC-AC Pure Since Wave Inverter
Peak power: 4000w
Continuous power: 2000w (can't use more than 2000w loads)

We will ship with appropriate specification based on different countries as below:
USA: 110V
UK: 220V
EU: 230V
AU: 240V

Solar kit will be delivered in separate packages.

Additional details

• Material Type : Monocrystalline Silicon

Features & Specs

• Amperage Capacity : 5.56 Amps
• Connector Type : Flange
• Efficiency : High Efficiency
• Maximum Power : 100 Watts
• Maximum Voltage : 18 Volts

Item details

• ASIN : B086K1PZ1B
• Brand Name : AUECOOR
• Included Components : 1* 800w wind turbine, 4* 100w mono solar panel, 1* 2000w peak 4000w pure sine wave inverter, 1* wind controller, 1* 30A Solar controller, 1* cable with alligator clip, 1* cable with F/M connector, 1* 4 in 1 F/M Connector
• Manufacturer : AUECOOR
• Manufacturer Part Number : AUE-1200WHybrid-400MPV-800WWindTurbine
• Model Number : 100W-18V-Mono
• UPC : 736900555448

Measurements

• Item Weight : 15.5 Pounds
