3000W/4000W/5000W Wind&Solar Hybrid System MPPT Charge Controller Sola

3000W/4000W/5000W Wind&Solar Hybrid System MPPT Charge Controller Solar Controller Wind Turbine 12V/24V/48V Auto Regulator Home Use Wind Generator,3000W-12V

$71.30 $191.48

✔LCD Wind and Solar Complementary System MPPT Charge Controller Household Wind Turbine Controller 12V 24V 48V Household Lighting Equipment Automatic Controller

★This wind-solar hybrid street light controller is specially designed for small off-grid devices where wind generators and solar panels charge batteries safely and efficiently.
♥Specifications:
Rated system voltage: 12V/24V/48V
Rated wind power: 3000W/4000W/5000W
No-load current: ≤0.05A
Controller power supply mode: battery or photovoltaic panel
Control mode: wind turbine MPPT boost charging, PWM unloading, PWM overcurrent
Load: multiple working modes selection: pure light control mode, normal open mode, light control + time control mode (four periods + morning light)

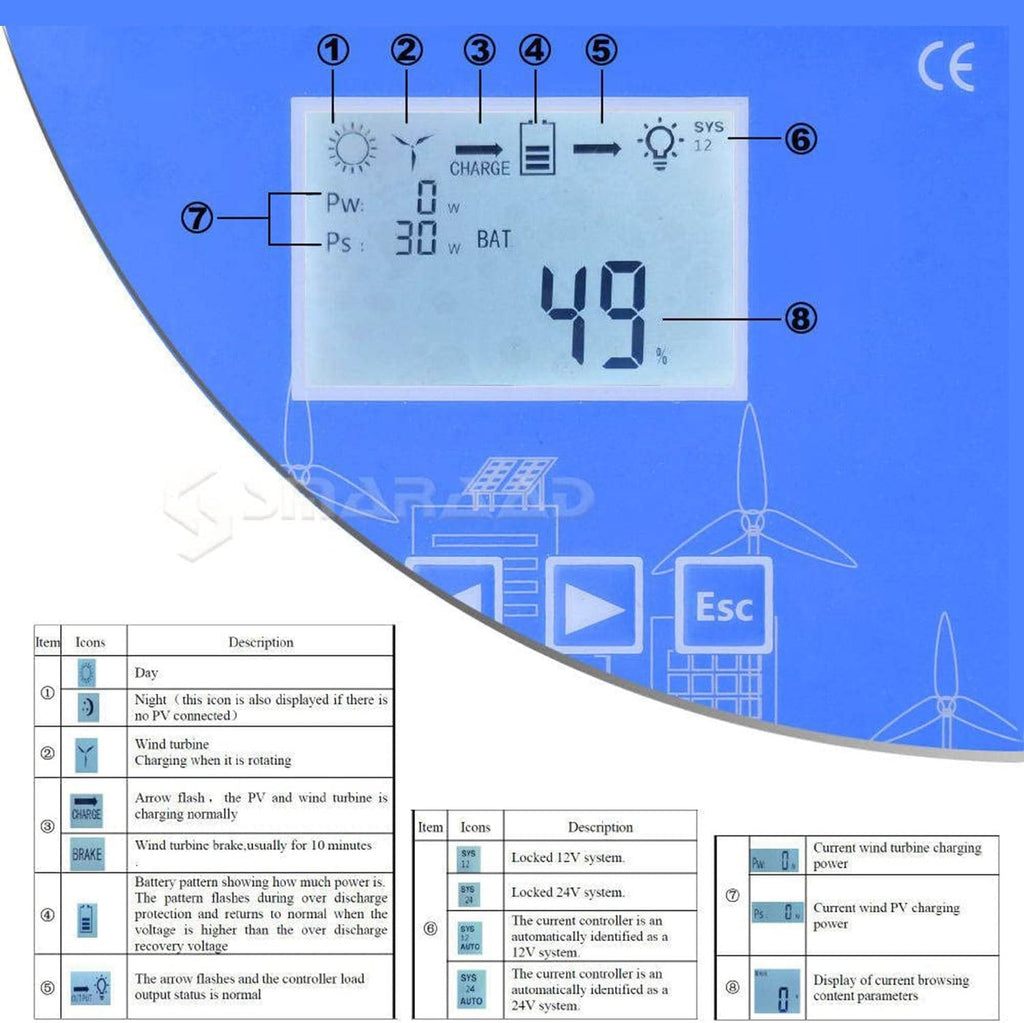

Display mode: liquid crystal display
Display parameters: voltage, battery power, current, power, load mode, temperature, etc.
Heat dissipation method: aluminum profile heat dissipation and self-cooling
Operating temperature and humidity range: - 20~+55°C/35~85%RH (non-condensing)

♥Functions and Features:
Ø Wind turbine MPPT boost charging function.
Ø Wind PWM unloading, external unloading resistor, intelligent solar charge separation.
Ø Dual power supply function: battery + solar power supply.
Ø LCD display wind, day, load voltage, current and other parameters. Some parameters can be set by the user.
Ø DC output, three output modes.
Ø Made of aerospace aluminum, one-time molding and stretching material, the surface is anodized for impact resistance and drop resistance.
Ø The internal circuit board of the controller is sprayed with protective varnish to prevent dust, moisture and static electricity.

♥Packing list:
1x Wind Hybrid Charge Controller

♥If you have any questions, please contact us, we will reply within 24 hours.
