12/24/48V Battery Off Grid Controller Wind Turbine Solar Hybrid MPPT C

12/24/48V Battery Off Grid Controller Wind Turbine Solar Hybrid MPPT Charge Boost Controller with Unloader Suitable for Wind Generator Solar Panel Controller,48V-10000W

$86.96 $239.53

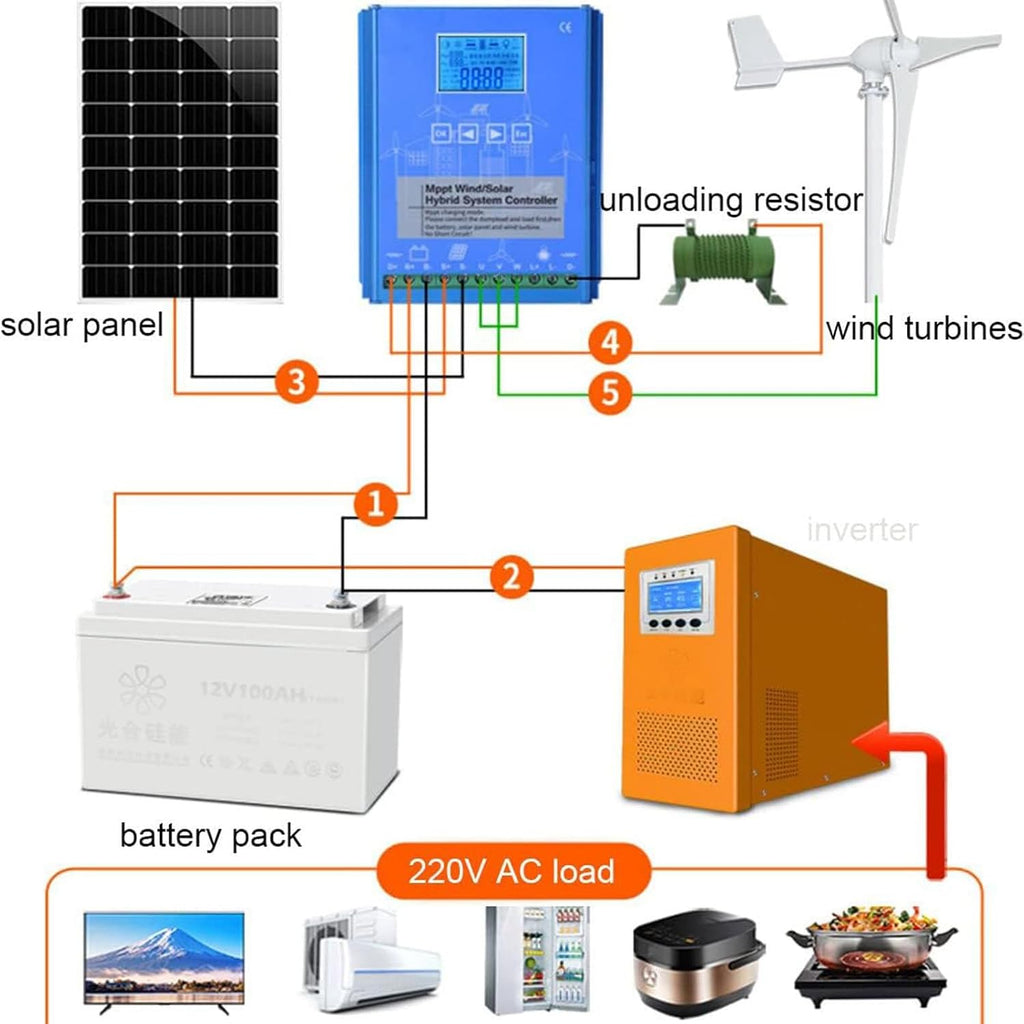

►▻► MPPT Wind Solar Hybrid Controller 12V 24V 48V

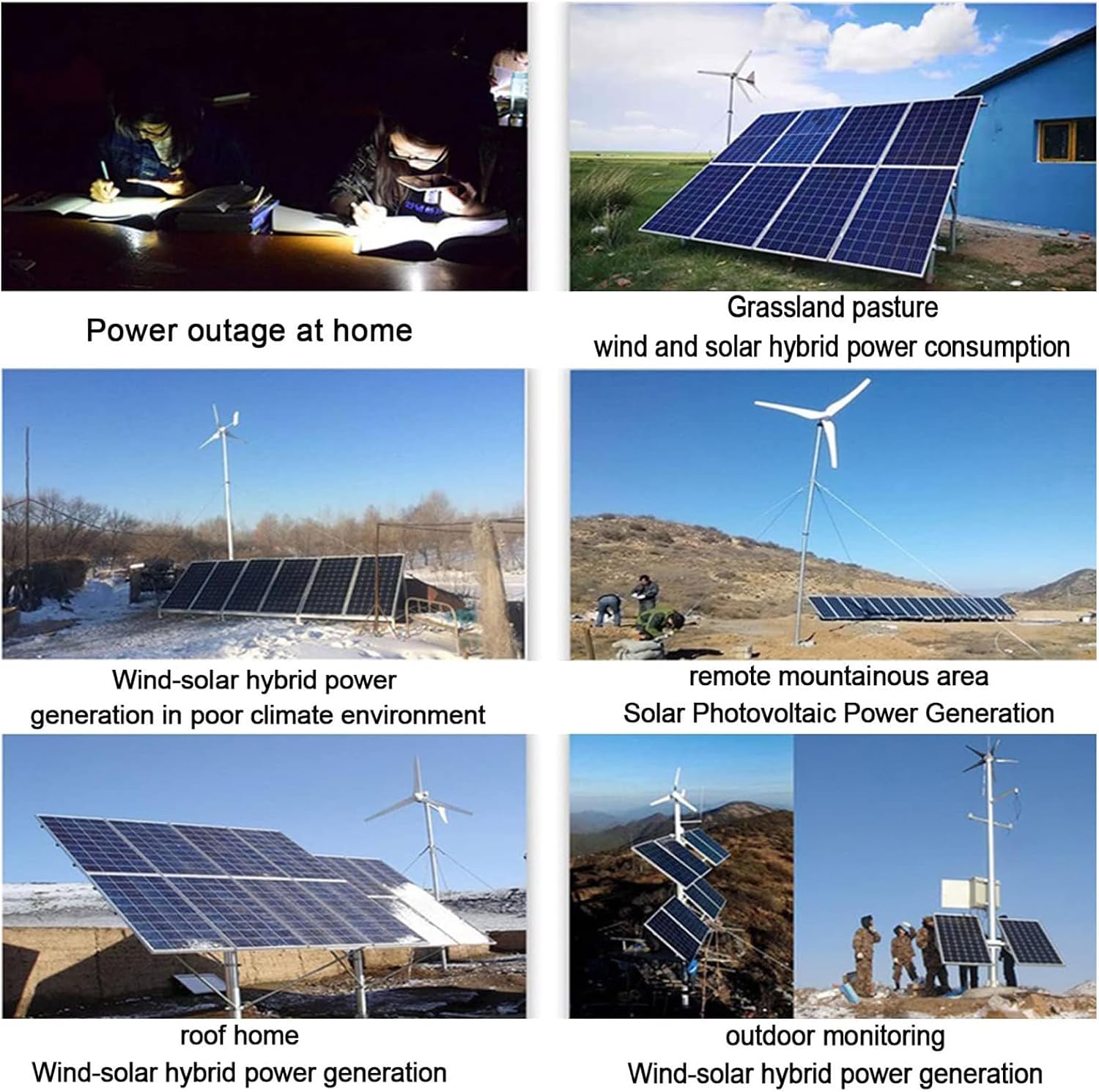

It is special designed for hybrid wind solar power charge for low-power street lamp, monitoring etc. And it is workable for Lithium , GEL, Lead-acid battery with full charge and discharge protection.

【Features】

- Automatically match with 12V/24V/48V sealed battery voltage;

- 4 battery types including acid battery, ternary lithium battery, and lithium iron phosphate can be customized for charging.

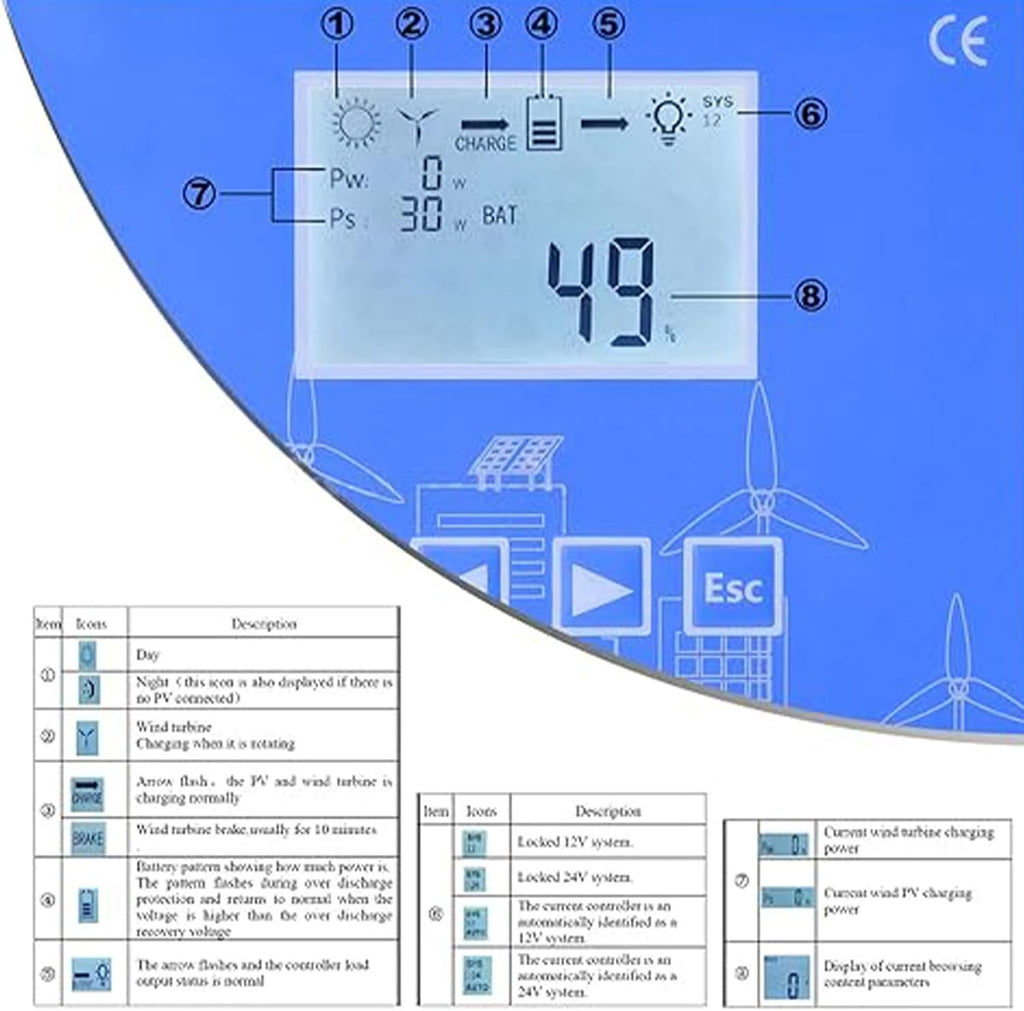

- The display adopts a color screen design, which displays more comprehensive information and a clearer interface, more convenient.

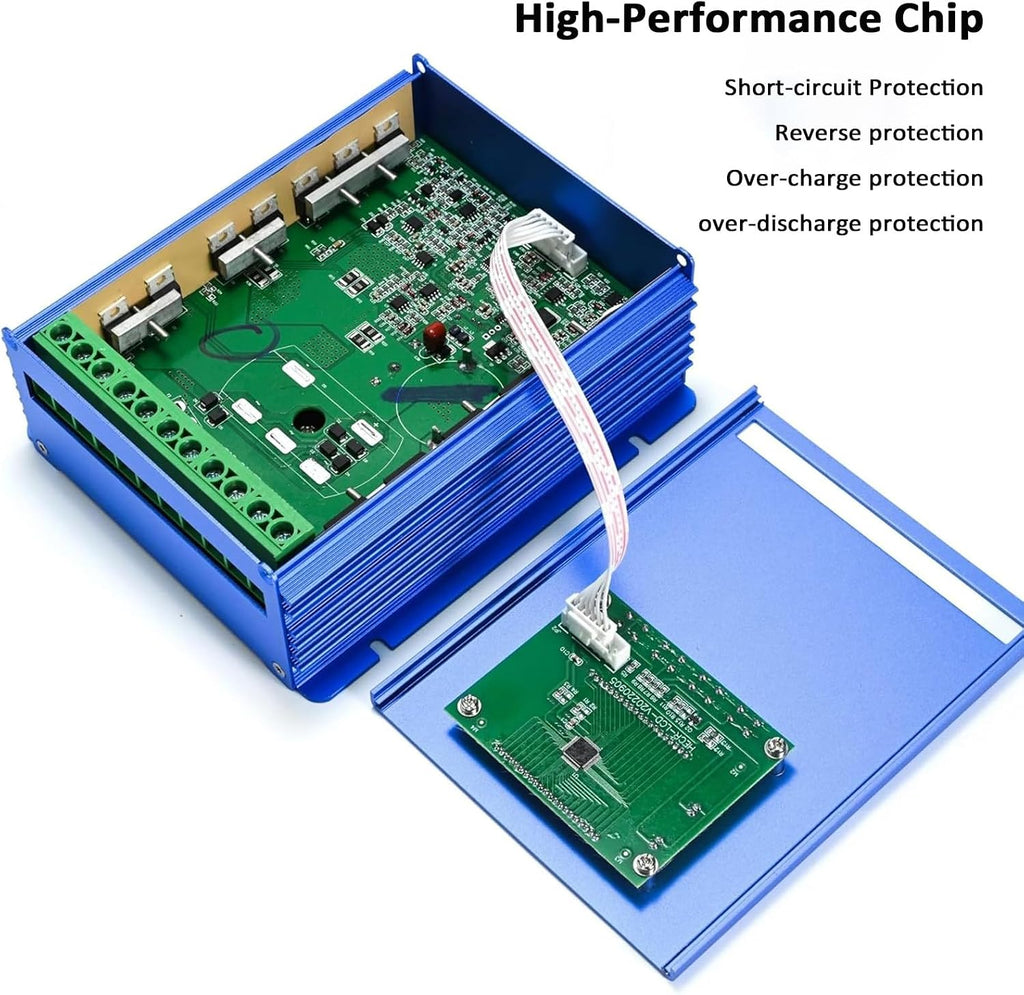

- Has comprehensive protection functions such as overcharge, over-discharge, and overload.

- The MPPT control algorithm used for wind turbine charging ensures MPPT charging at low wind speeds.

- Three-stage charging method for the fan: MPPT charging-boost charging-floating charging.

- Photovoltaic three-stage charging method: CC constant current - boost charging - float charging.

【Specification】

Project type: MPPT wind and solar hybrid controller
Material: aluminum alloy
Rated voltage: 12V/24V/48V
(Wind power rating + photovoltaic rating) / Voltage ≤ 40A.
Wind power rating / rating voltage ≤25A
Photovoltaic rating / rating ≤25A
No-load current (DC): ≤0.05A
Controller power supply mode: battery or photovoltaic panel
Working temperature and humidity range: - 20~+55℃/35~85% RH (no condensation)

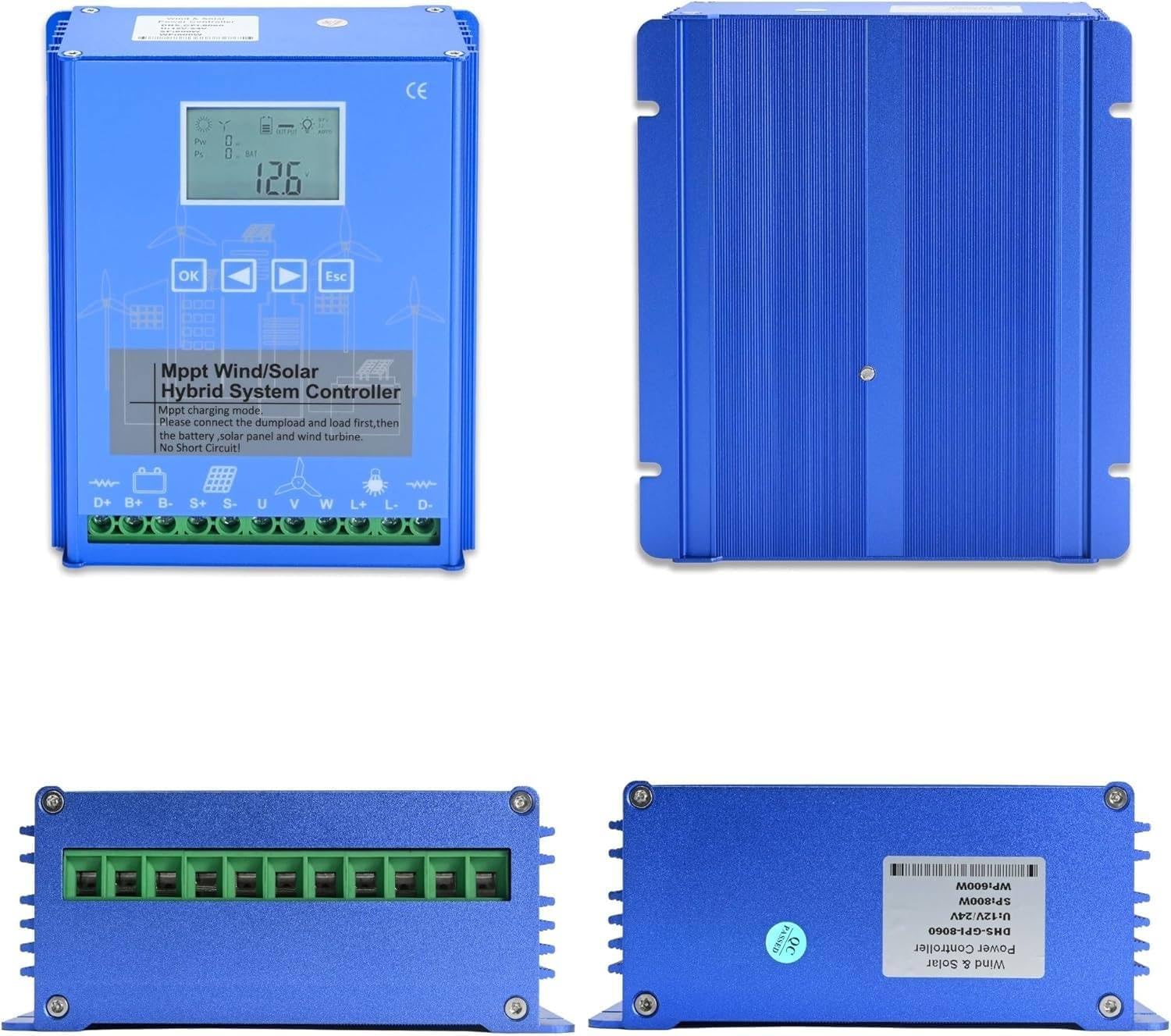

Controller size: 167 x 145.5 x 61.8mm/6.57 x 5.7 x 2.4in

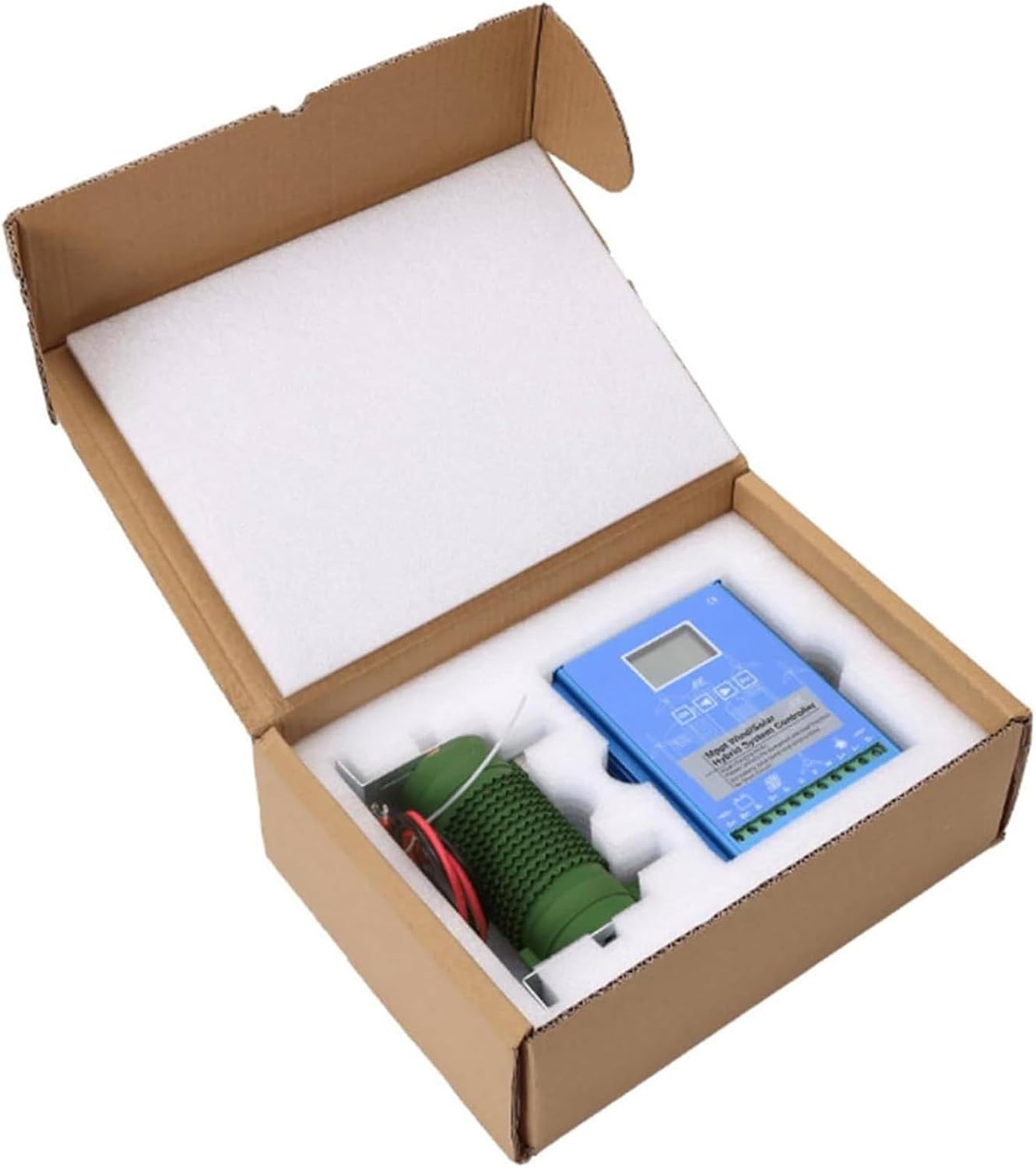

【Packing List】

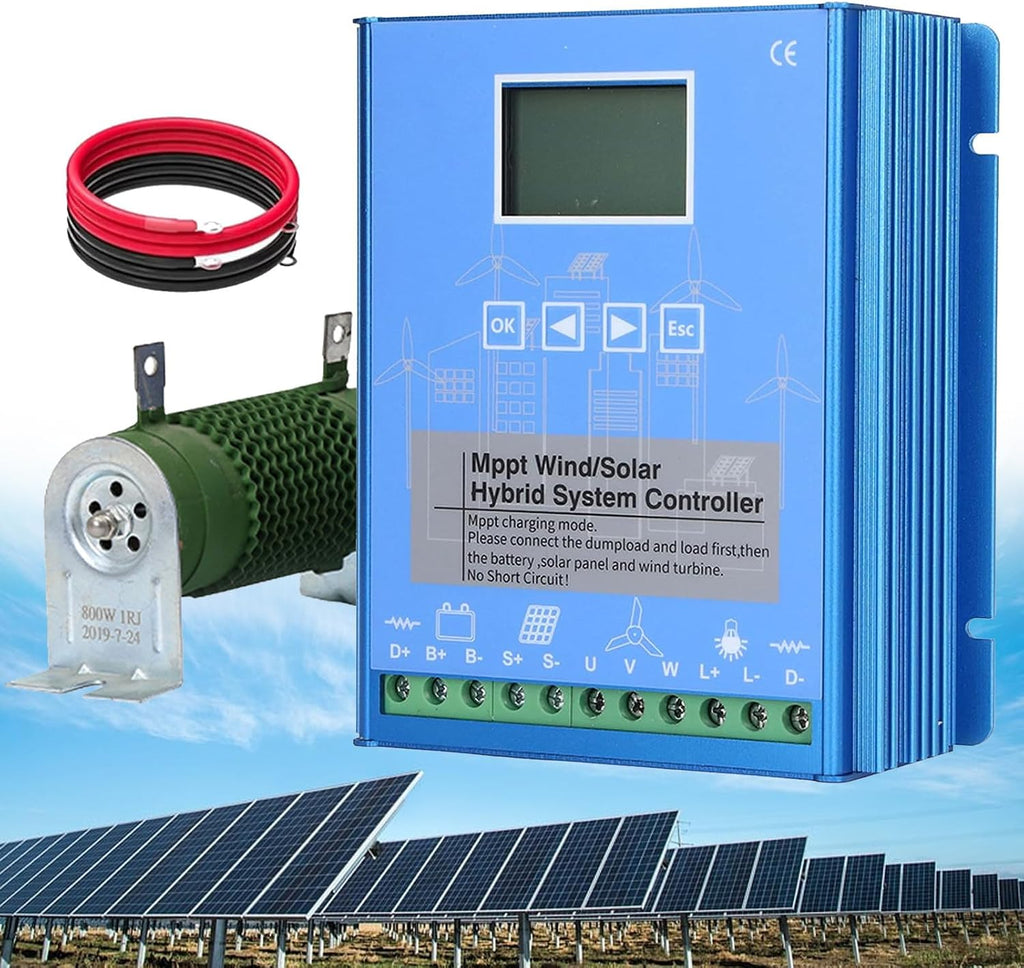

1 x wind and solar hybrid controller
1 x external discharge resistor
2 x resistor cable
1 x instruction manual
