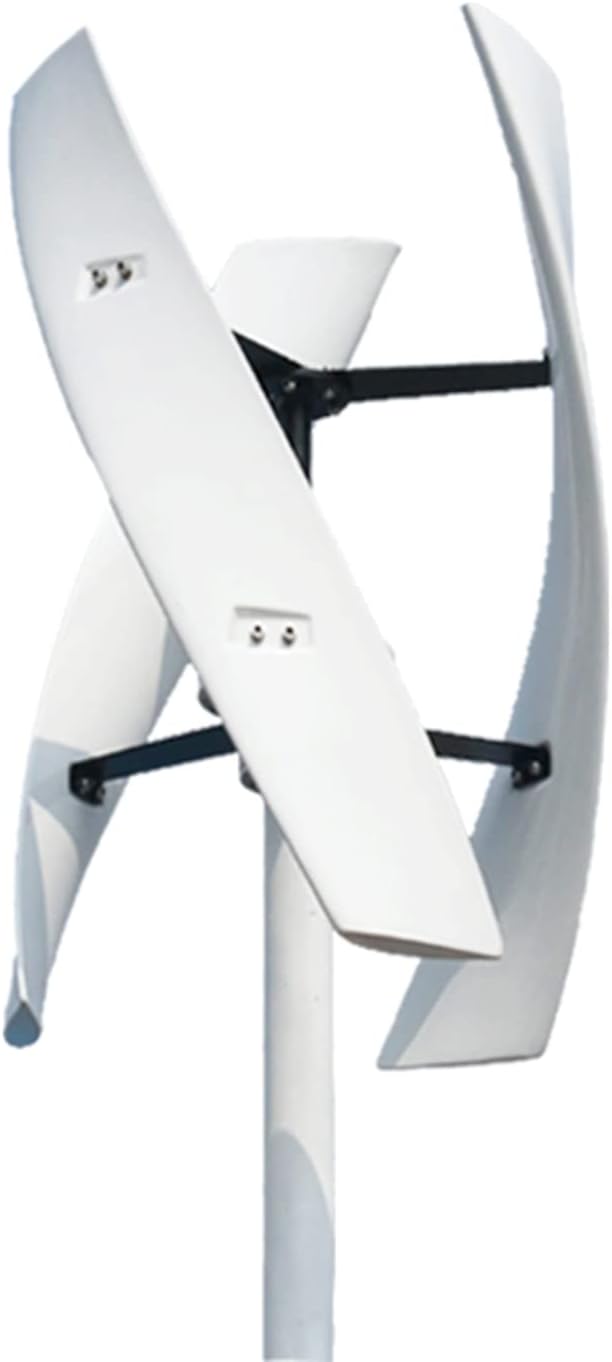

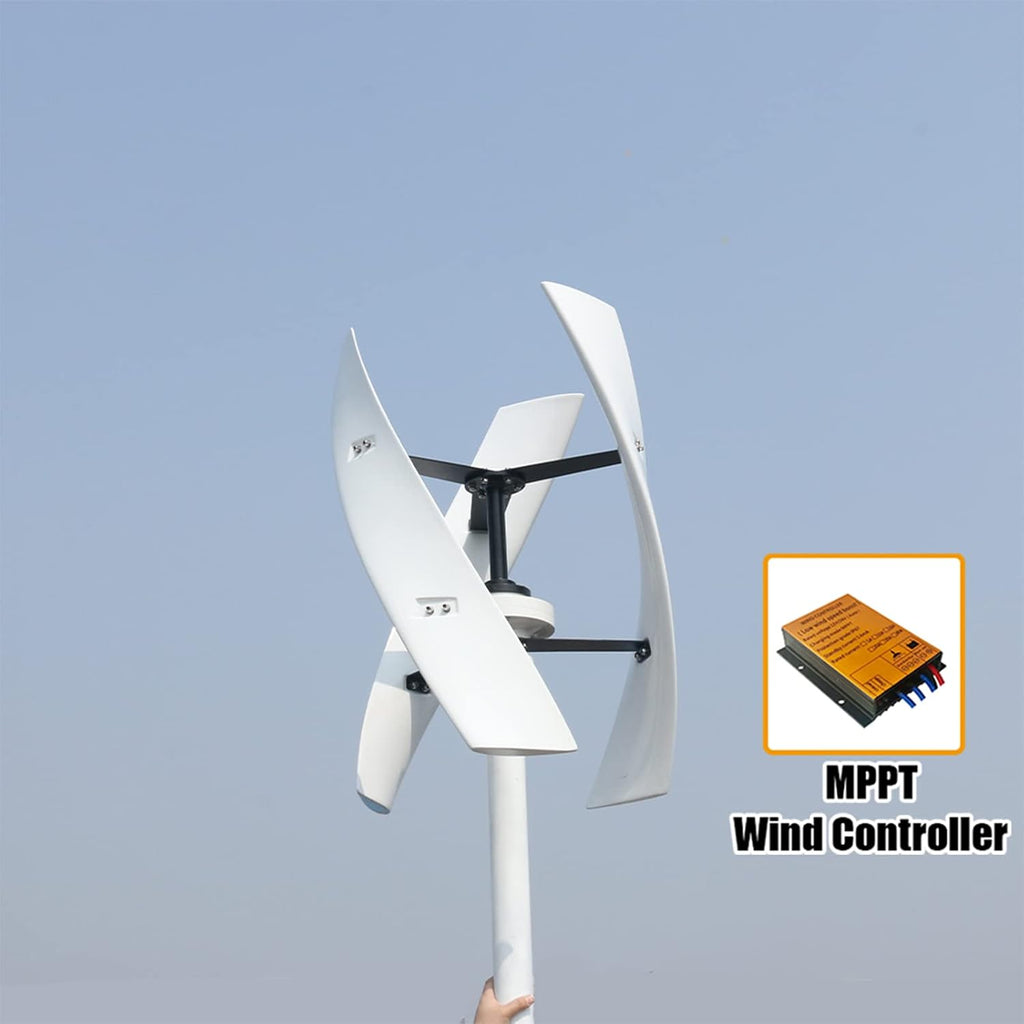

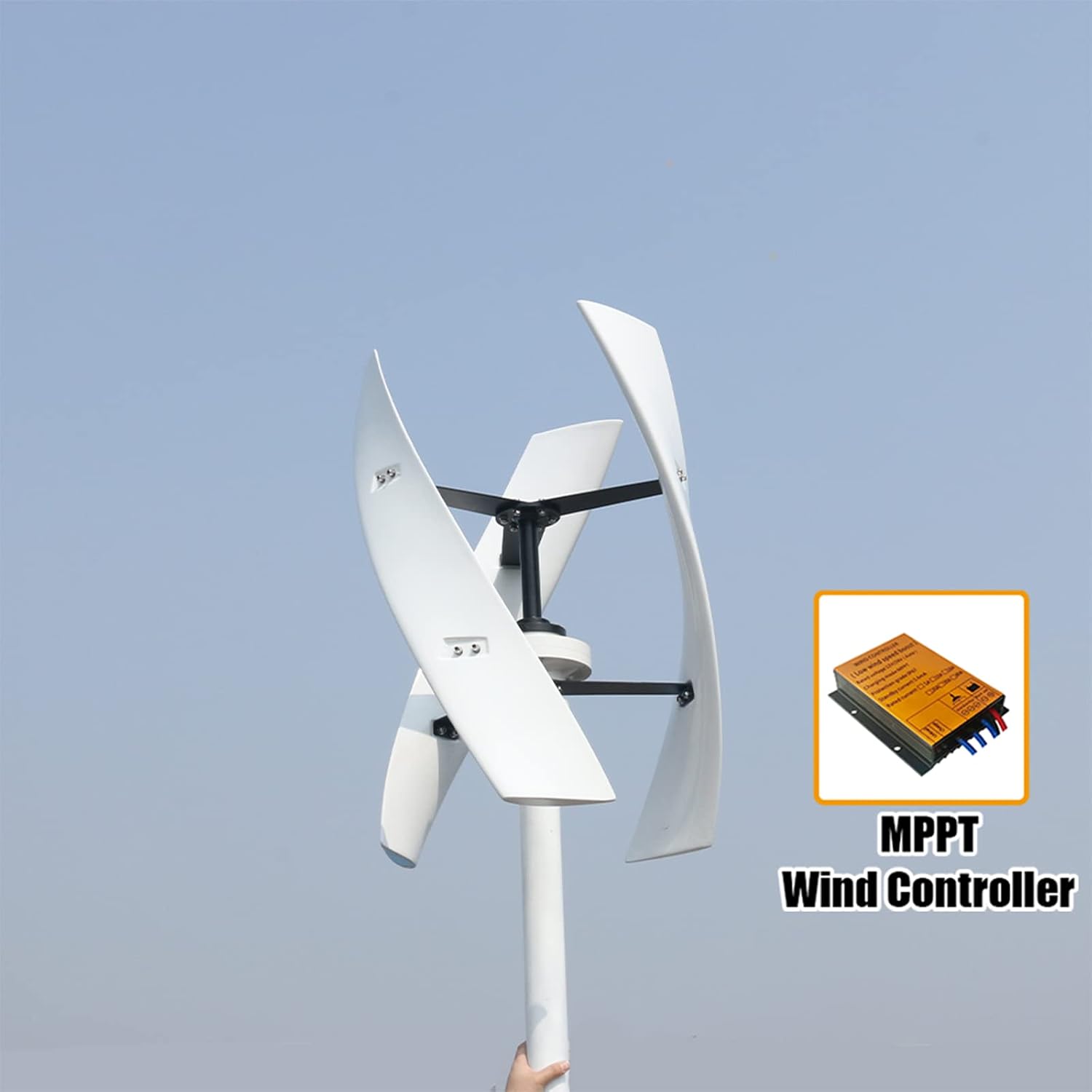

Vertical Axis Maglev Wind Turbine Generator Kit, with MPPT Controller

Vertical Axis Maglev Wind Turbine Generator Kit, with MPPT Controller 12V 24V 48V 220V 3 Blades Low RPM Vertical Wind Power Generator 3000W

$356.85 $958.01

Product description:

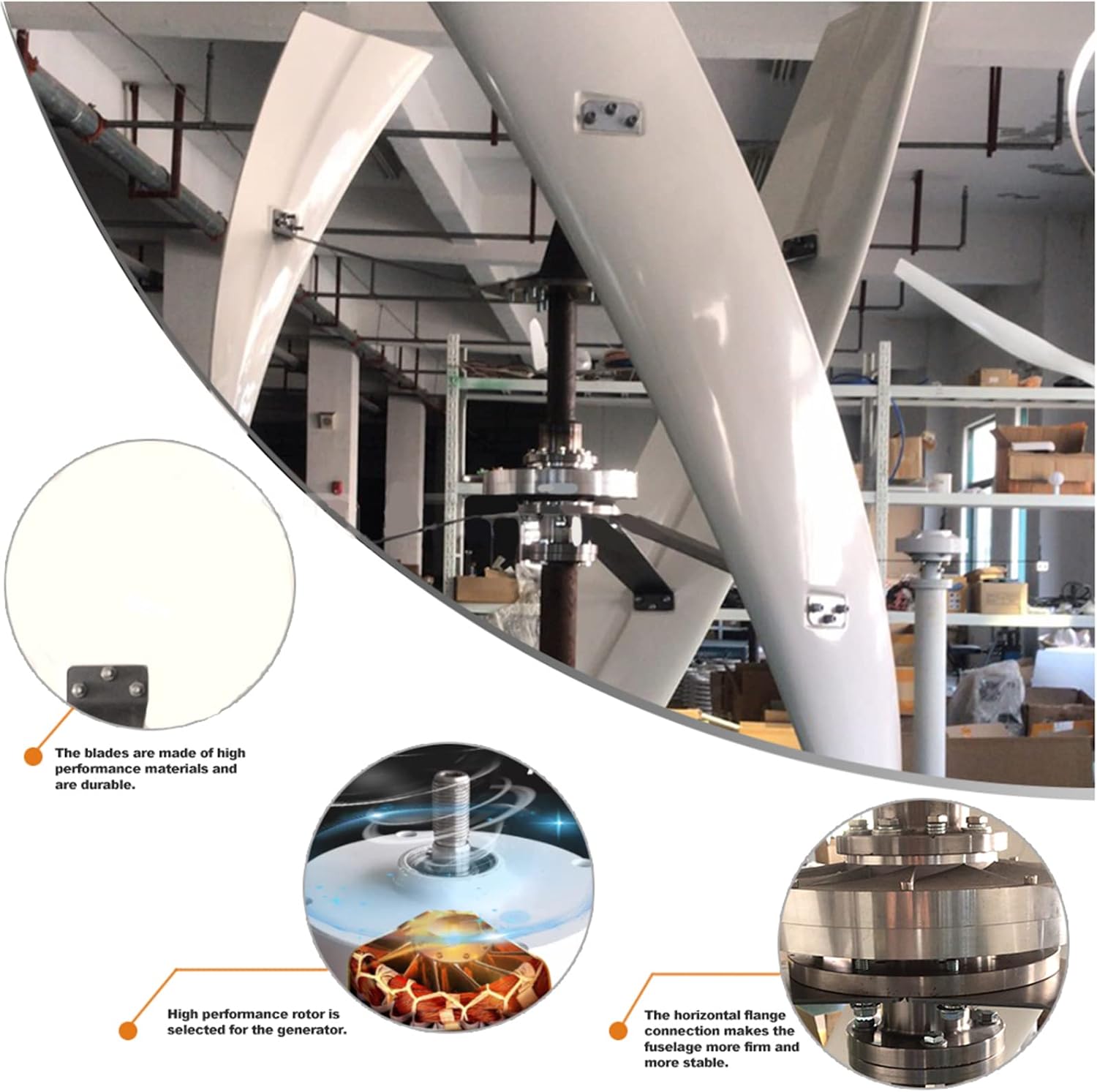

1. Magnetic levitation generator Coreless generator, Horizontal rotation with high efficiecny

2.3 blades with curved design,utilizes wind resource effectively and obtains a higher power generation

3. 20years use life and 1 year for warranty, warmly welcome to be our agent.

4.small ,light ,stable and safely, special control principle expended the wind speed to 2.5 ~ 25m/s, utilizes wind resource effectively and obtains a higher power generation.

SPECIFICATIONS:

Started wind speed (m/s):2 m/s

Cut-in wind speed (m/s):3 m/s

Rated Wind speed (m/s):10 m/s

Rated voltage(AC): 12V/24V/48V 220V

Rated power(W):3000W

Rotor Diameter of Blades(m):0.52m

Product assembly weight (Kg):<12KG

Blades colors:White

Blades height(m):0.75m

Safe wind speed (m/s):≤40m/s

Blades quantity:3

Blade material:Galvanised aluminium alloy

Generator:Three phase permanent magnet suspension motor

Control System:Electromagnet

Mount Height(m):2- 12m

Generator protection grade:IP54

Work environment temperature:-25~ +459C

Work environment humidity:≤90%

Altitude:≤4500m

Overspeed protection:Electromagnetic brake

Overload protection:Electromagnetic brake and the unloading unit

PACKING LIST:

3×pcs blades

1×generator

1 ×bolts &nuts

1× Main shaft and arms

1×Wind controller
